High Voltage Rail To Rail Output Operational Amplifiers Integrated Circuit IC
Λεπτομέρειες:
| Τόπος καταγωγής: | Dongguan China |
| Μάρκα: | UCHI |
| Πιστοποίηση: | Completed |
| Αριθμό μοντέλου: | SGM8271/8272/8274 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1000pcs |
|---|---|
| Τιμή: | Διαπραγματεύσιμα |
| Συσκευασία λεπτομέρειες: | Πρότυπο |
| Χρόνος παράδοσης: | 3 εβδομάδων |
| Όροι πληρωμής: | T/T, Western Union |
| Δυνατότητα προσφοράς: | 5000pcs |
|
Λεπτομερής ενημέρωση |
|||
| Τάση τροφοδοσίας: | 40V | Κοινή σειρά τάσης τρόπου εισαγωγής: | (-VS) - 0,1V έως (+VS) - 1,5V |
|---|---|---|---|
| Εύρος τάσης εισόδου/εξόδου: | (-VS) - 0,3V έως ( + VS) + 0,3V | Διαφορική τάση εισαγωγής: | 1,5V |
| ΘΕΡΜΟΚΡΑΣΙΑ ΣΥΝΔΕΣΕΩΝ: | +150℃ | Εύρος θερμοκρασίας αποθήκευσης: | -65℃ σε +150℃ |
| Θερμοκρασία μολύβδου (συγκόλληση, 10s): | +260℃ | HBM: | 4000V |
| MM (SGM8271/2): | 150V | MM (SGM8274): | 300V |
| Εύρος θερμοκρασίας λειτουργίας: | -40 ℃ έως +85 ℃ | ||
| Επισημαίνω: | high voltage operational amplifiers,hv op amp ic,high voltage rail to rail op amp |
||
Περιγραφή προϊόντων
High Voltage Rail-to-RailOutput Operational Amplifiers Integrated Circuit IC

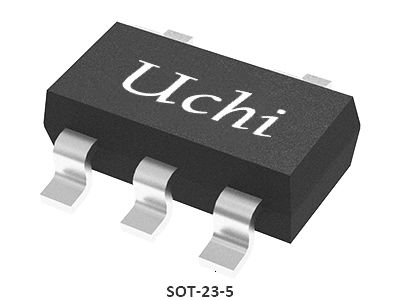

The SGM8271 (single), SGM8272 (dual) and SGM8274(quad) are high voltage operational amplifiers, whichcan operate from 4.5V to 36V single supply or from±2.25V to ±18V dual power supplies. They provide awide input common mode voltage range and rail-to-railoutput voltage swing.The SGM8271/2/4 provide high slew rate, low offset,drift and bias current.The SGM8271 is available in Green SOT-23-5,MSOP-8 and SOIC-8 packages. The SGM8272 isavailable in Green SOIC-8 and MSOP-8 packages. TheSGM8274 is available in Green SOIC-14 and TSSOP-14packages. They are specified over the extended -40℃to +125℃ temperature range.
Key Features
• Rail-to-Rail Output
• Wide Input Common Mode Voltage Range
• Low Offset Voltage: 3mV (MAX)
• Low Input Bias Current
• Low Input Offset Current
• Low Quiescent Current: 150µA/Amplifier
• Output Short-Circuit Protection• High Input Impedance
• High Slew Rate: 7V/µs
• Small Packaging:SGM8271 Available in Green SOT-23-5, MSOP-8and SOIC-8 PackagesSGM8272 Available in Green MSOP-8 and SOIC-8PackagesSGM8274 Available in Green TSSOP-14 and SOIC-14Packages
Applications
High Impedance Sensor
Precision Instrumentation
Photodiode Amplifier
Phase-Locked Loop Filter
High End, Professional Audio
Medical
ATE
DAC Output Amplifier
Precision Instrumentation
Photodiode Amplifier
Phase-Locked Loop Filter
High End, Professional Audio
Medical
ATE
DAC Output Amplifier

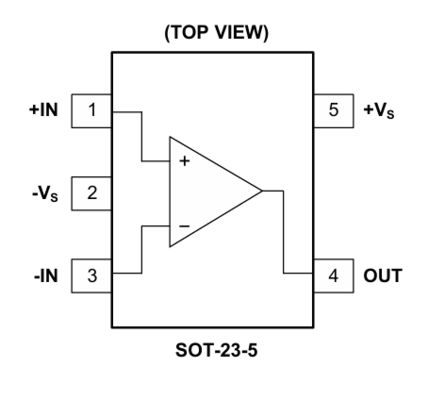

Pin Configurations
Product Selection Guide
| Amplifiers per Package | Part Number | IQ/Amp Typ (μA) | Shut-down | VCC(V) | GBP Typ (kHz) | Slew Rate Typ (V/ms) | ENOISE 0.1Hz ~ 10Hz (μVPP) | ENOISE Typ @1kHz (nV/√Hz) | VOS Max @25℃ (mV) | TC of VOS Typ (μV/℃) | IB Typ (pA) | AVO Typ (dB) | CMRR Typ (dB) | Rail-to-Rail Input | Rail-to-Rail Output | Package | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | SGM8271 | 150 | No | 4.5~36 | 1.4 | 7000 | 43 | 3 | 3 | 20 | 100 | 95 | No | Yes |
SOT-23-5,SOIC-8,MSOP-8
|
1.4MHz, 7V/μs, Low Power, Rail-to-Rail Output
|
|
| 2 | SGM8272 | 150 | No | 4.5~36 | 1.4 | 7000 | 43 | 3 | 3 | 20 | 100 | 95 | No | Yes |
SOIC-8,MSOP-8
|
1.4MHz, 7V/μs, Low Power, Rail-to-Rail Output
|
|
| 4 | SGM8274 | 150 | No | 4.5~36 | 1.4 | 7000 | 43 | 3 | 3 | 20 | 100 | 95 | No | Yes |
SOIC-14,TSSOP-14
|
1.4MHz, 7V/μs, Low Power, Rail-to-Rail Output
|
|
| 1 | SGM8521 | 5.5 | No | 2.1~5.5 | 0.15 | 50 | 85 | 3.5 | 2 | 3 | 110 | 87 | Yes | Yes |
SOT-23-5,SOIC-8
|
Low Bias Current, Micro Power, Rail-to-Rail Input and Output
|
|
| 2 | SGM8522 | 5.5 | No | 2.1~5.5 | 0.15 | 50 | 85 | 3.5 | 2 | 3 | 110 | 87 | Yes | Yes |
SOIC-8,MSOP-8
|
Low Bias Current, Micro Power, Rail-to-Rail Input and Output
|
|
| 4 | SGM8524 | 5.5 | No | 2.1~5.5 | 0.15 | 50 | 85 | 3.5 | 2 | 3 | 110 | 87 | Yes | Yes |
SOIC-14,TSSOP-14
|
Low Bias Current, Micro Power, Rail-to-Rail Input and Output
|
|
| 1 | SGM8531 | 18 | No | 2.1~5.5 | 0.5 | 200 | 33 | 3.5 | 1.7 | 0.5 | 104 | 75 | Yes | Yes |
SOT-23-5,SOIC-8
|
Low Bias Current, Micro Power, Rail-to-Rail Input and Output
|
|
| 2 | SGM8532 | 18 | No | 2.1~5.5 | 0.5 | 200 | 33 | 3.5 | 1.7 | 0.5 | 104 | 75 | Yes | Yes |
SOIC-8,MSOP-8
|
Low Bias Current, Micro Power, Rail-to-Rail Input and Output
|
|
| 4 | SGM8534 | 18 | No | 2.1~5.5 | 0.5 | 200 | 33 | 3.5 | 1.7 | 0.5 | 104 | 75 | Yes | Yes |
SOIC-14,TSSOP-14
|
Low Bias Current, Micro Power, Rail-to-Rail Input and Output
|
|
| 1 | SGM8535 | 80 | No | 1.8~5.5 | 1.5 | 800 | 30 | 3.4 | 1.5 | 3 | 103 | 85 | No | Yes |
SOT-23-5,SC70-5,SOIC-8,MSOP-8
|
1.5MHz, 1.8V, Unity-Gain Stable, Rail-to-Rail Output
|
|
| 2 | SGM8536 | 80 | No | 1.8~5.5 | 1.5 | 800 | 30 | 3.4 | 1.5 | 3 | 103 | 85 | No | Yes |
SOIC-8,MSOP-8
|
1.5MHz, 1.8V, Unity-Gain Stable, Rail-to-Rail Output
|
|
| 1 | SGM8537 | 80 | Yes | 1.8~5.5 | 1.5 | 800 | 30 | 3.4 | 1.5 | 3 | 103 | 85 | No | Yes |
SOT-23-6,SOIC-8,MSOP-8
|
1.5MHz, 1.8V, Unity-Gain Stable, Rail-to-Rail Output
|
|
| 4 | SGM8538 | 80 | No | 1.8~5.5 | 1.5 | 800 | 30 | 3.4 | 1.5 | 3 | 103 | 85 | No | Yes |
SOIC-14,TSSOP-14
|
1.5MHz, 1.8V, Unity-Gain Stable, Rail-to-Rail Output
|
|
| 1 | SGM8541 | 46 | No | 2.1~5.5 | 1.1 | 520 | 27 | 3.5 | 2.7 | 0.5 | 105 | 80 | Yes | Yes |
SOT-23-5,SOIC-8,SC70-5
|
Pico Amp Input Current, Micro Power, Rail-to-Rail Input and Output
|
|
| 2 | SGM8542 | 46 | No | 2.1~5.5 | 1.1 | 520 | 27 | 3.5 | 2.7 | 0.5 | 105 | 80 | Yes | Yes |
SOIC-8,MSOP-8,TSSOP-8
|
Pico Amp Input Current, Micro Power, Rail-to-Rail Input and Output
|
|
| 1 | SGM8543 | 48 | Yes | 2.1~5.5 | 1.1 | 520 | 27 | 3.5 | 2.7 | 0.5 | 105 | 76 | Yes | Yes |
SOT-23-6,SOIC-8
|
Pico Amp Input Current, Micro Power, Rail-to-Rail Input and Output
|
|
| 4 | SGM8544 | 46 | No | 2.1~5.5 | 1.1 | 520 | 27 | 3.5 | 2.7 | 0.5 | 105 | 80 | Yes | Yes |
SOIC-14,TSSOP-14
|
Pico Amp Input Current, Micro Power, Rail-to-Rail Input and Output
|
|
| 1 | SGM8545 | 48 | No | 2.1~5.5 | 1.1 | 520 | 27 | 3.5 | 2.7 | 0.5 | 105 | 76 | Yes | Yes |
SOT-23-5
|
Pico Amp Input Current, Micro Power, Rail-to-Rail Input and Output
|
Integrated circuits (ICs) serve as the foundation of modern electronics, offering small size, low power consumption, strong performance and high reliability. They are widely used in consumer electronics, industrial applications, communications, automotive electronics, medical equipment, and aerospace/defense systems.
Uchi Electronics provides high-performance analog and mixed-signal processing solutions for industrial automation, new energy, automotive, communications, computing, consumer electronics and medical equipment applications.
This solution demonstrates the application of integrated circuits in the medical field - monitors. For assistance selecting the right product, please contact our technical support team.
