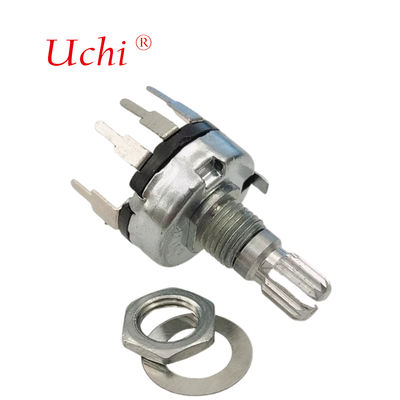

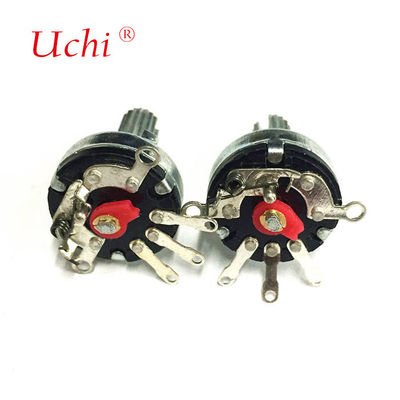

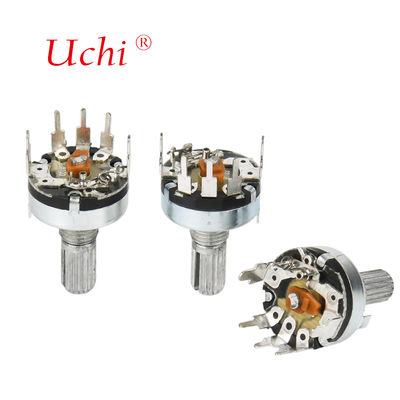

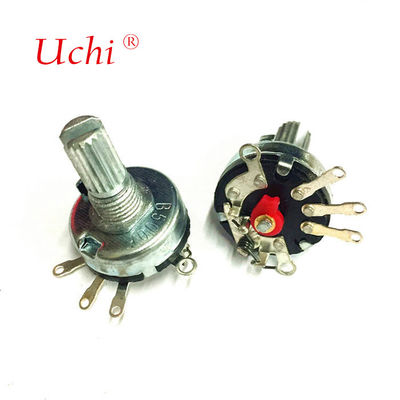

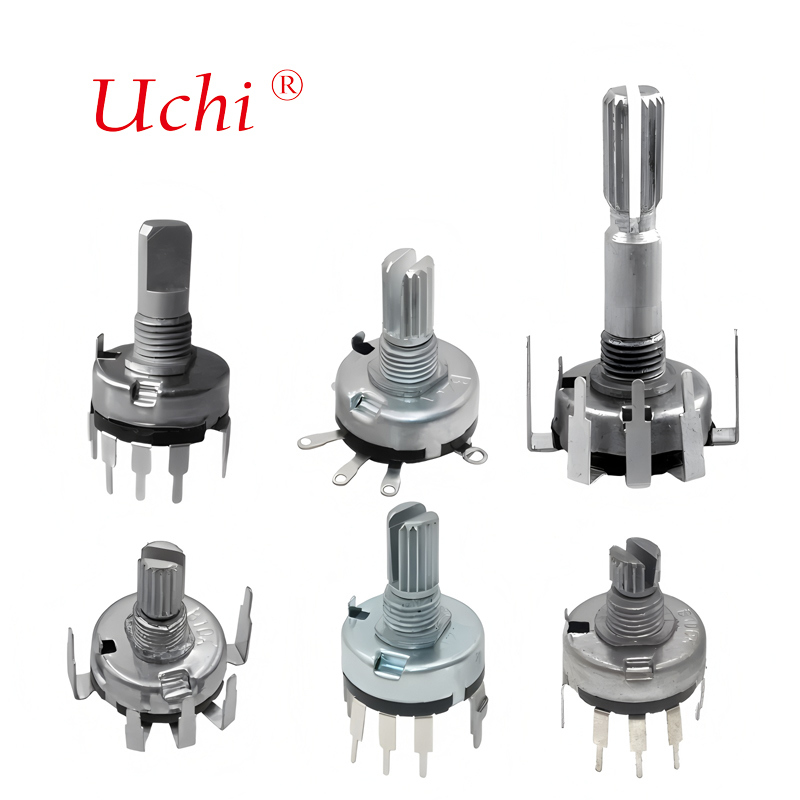

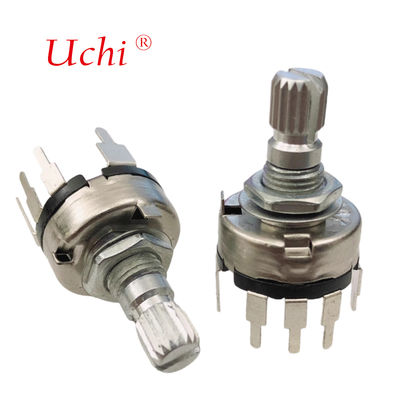

RV17 With Switch Metal Shaft 10K, 100K, 500K Carbon Film Single Group 3-pin 17mm Volume Control Rotary Potentiometer
Λεπτομέρειες:
| Τόπος καταγωγής: | Dongguan, Guangdong, Κίνα |
| Μάρκα: | Uchi |
| Πιστοποίηση: | SMC |
| Αριθμό μοντέλου: | RV17 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 100pcs |
|---|---|
| Τιμή: | Διαπραγματεύσιμα |
| Όροι πληρωμής: | T/T, paypal, Western Union, MoneyGram |
| Δυνατότητα προσφοράς: | 50000000pcs το μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Ανοχή αντίστασης: | ± 20% | Εύρος θερμοκρασίας: | -10°C~100°C |
|---|---|---|---|
| Συνολική γωνία περιστροφής: | 260°±5° | Θόρυβος περιστροφής: | ≤ 47mV |
| Αντίσταση: | 1KΩ~2MΩ | Χαρακτηριστικά: | Περιστροφικό ποτενσιόμετρο ταινιών άνθρακα |
| Ονομαστική ισχύς: | Καμπύλη Β:0,1W Άλλη καμπύλη Β:0,05WV | Τύπος άξονα: | Άξονας από άνθη δαμασκηνιάς/Άξονας σε σχήμα D |
| νόμος αντίστασης: | Α, Β, Γ | Περιστροφική ζωή: | 10,000 Κύκλοι |
| Επισημαίνω: | 17mm volume control potentiometer with switch,carbon film rotary potentiometer 10K 100K 500K,metal shaft precision potentiometer 3-pin |
||
Περιγραφή προϊόντων
RV17 With Switch Metal Shaft 10K, 100K, 500K Carbon Film Single Group 3-pin 17mm Volume Control Rotary Potentiometer
The V17 carbon film potentiometer with switch is a high-performance component offering reliability and long service life. Widely used in various electronic equipment including audio systems, communication devices, instruments, and home appliances.
Technical Specifications
- Total resistance value: 500 Ω -1M Ω
- Total resistance tolerance: ± 20%
- Impedance characteristic types: A, B, C, D
- Noise: Less than 100mV at 20 mmc
- Insulation impedance: More than 10M Ω at DC 250V
- Voltage withstand: 1 minute at AC 250V
- Residual resistance value: Term. 1-2: Less than 10 Ω Term. 2-3: Less than 10 Ω
- Synchronous error (dual connection): -40dB~0dB ± 3dB
Detailed Specifications
| ITEM | SPECIFICATION |
|---|---|
| Electrical Characteristics | |
| Temp Range | -10℃~100℃ |
| Rated Power | Curve B:0.1W Other curve B:0.05W |
| Max Operation Voltage | Curve B:AC 200V Other than B:AC 150V |
| Resistance Range | 1KΩ~2MΩ |
| Allow Desistance Tolerance | ±20% |
| Rotational Noise | ≤47mV |
| Terminal Resistance | R≥250KΩ 0.1%R max 250KΩ>R>10KΩ 20Ωmax 10KΩ≥R 100max |
| Resistance Law | A,B,C |
| Switch Contact Resistance | Less than 20mΩ |
| Dielectric | AC500V,1minute |
| Insulation resistance | More than 50MΩ at DC500V |
| Rated switching power | DC12V 1A |
| Welding tin temperature | 235°℃±5℃;≤3s |
| Mechanical Characteristics | |
| Rotational Torque | 7~40 mN.m(70~400gf.cm) |
| Total Rotational Angle | 260°±5° |
| Switch life | 10,000 times |
| Rotary life | 10,000 cycles |
| Shaft Stopper Strength | 3Kgf.cm/min |
| Push Pull Strength | 70 N |
| Switch working force/torque | 50~300gf.cm |
| Switch working angle | 30°±10° |
Product Dimensions
Applications
The RV17 carbon film potentiometer with switch is widely used in various electronic equipment including:
- Audio equipment
- Communication devices
- Instruments
- Home appliances
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support.
Could you provide samples?
Samples are available upon request after order placement.
Can your product be customized?
We accept OEM/ODM orders with flexible requirements.
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible.
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
