BLDC 75100 Brushless Motors For Home Application And Business Equipment
Λεπτομέρειες:
| Τόπος καταγωγής: | Dongguan China |
| Μάρκα: | UCHI |
| Πιστοποίηση: | Completed |
| Αριθμό μοντέλου: | BLDC 75100 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1000pcs |
|---|---|
| Τιμή: | Διαπραγματεύσιμα |
| Συσκευασία λεπτομέρειες: | Πρότυπο |
| Χρόνος παράδοσης: | 5-7 ημέρες |
| Όροι πληρωμής: | T/T, Western Union |
| Δυνατότητα προσφοράς: | 5000 τεμάχια |
|
Λεπτομερής ενημέρωση |
|||
| Καμία τάση φορτίων: | 220.4V | Ταχύτητα στο eff max: | 1489rpm |
|---|---|---|---|
| Πιστοποιητικό: | 3C | Ορυκτό μέγιστο: | 398.9W |
| Ροπή ανώτατη: | 2.607mn.m | ||
| Επισημαίνω: | Business Equipment BLDC Brushless Motors,75100 BLDC Brushless Motors |
||
Περιγραφή προϊόντων
BLDC 75100 Brushless Motors For Home Application And Business Equipment
Typical Applications:
1. Home Application
2. Business Equipment

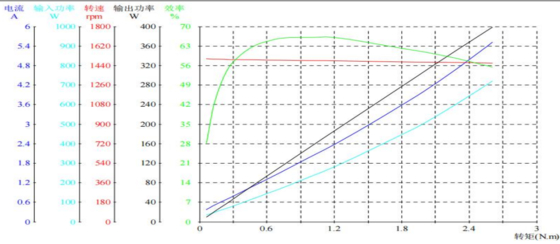

Brushless Motor Technical Data
| Point | VOLTAGE | CURRENT | INPUT POWER | SPEED | TORQUE | OUTPUT POWER | EFFICIENCY | POWER FACTOR | FREQUENCY | TIME |
| V | A | W | RPM | mN.m | W | % | Hz | S | ||
| NO LOAD | 220.4 | 0.377 | 34.89 | 1502 | 0.064 | 10.06 | 28.8 | 0.42 | 50.02 | 0 |
| EFF MAX | 200.2 | 1.589 | 178 | 1489 | 0.763 | 118.8 | 66.8 | 0.509 | 50.01 | 19.11 |
| POUT MAX | 219.8 | 5.511 | 720.4 | 1462 | 2.607 | 398.9 | 55.4 | 0.595 | 50.02 | 31.78 |
| TORQUE MAX | 219.8 | 5.511 | 720.4 | 1462 | 2.607 | 398.9 | 55.4 | 0.595 | 50.02 | 31.78 |
| END | 219.8 | 5.511 | 720.4 | 1462 | 2.607 | 398.9 | 55.4 | 0.595 | 50.02 | 31.78 |
Features:
- High Efficiency: BLDC motors are highly efficient because they eliminate the mechanical energy loss due to friction in brushed motors. This efficiency is particularly advantageous in battery-powered applications where energy conservation is crucial.
- Long Lifespan: The absence of brushes means there is no brush and commutator erosion, which significantly extends the motor's lifespan. The lifespan is usually limited only by the bearings.
- High Power-to-Weight Ratio: BLDC motors can deliver high power relative to their size and weight. This makes them ideal for applications where weight and space are critical, such as in model aircraft and drones.
